Thông số kỹ thuật
| Range | PowerLogic |
|---|---|

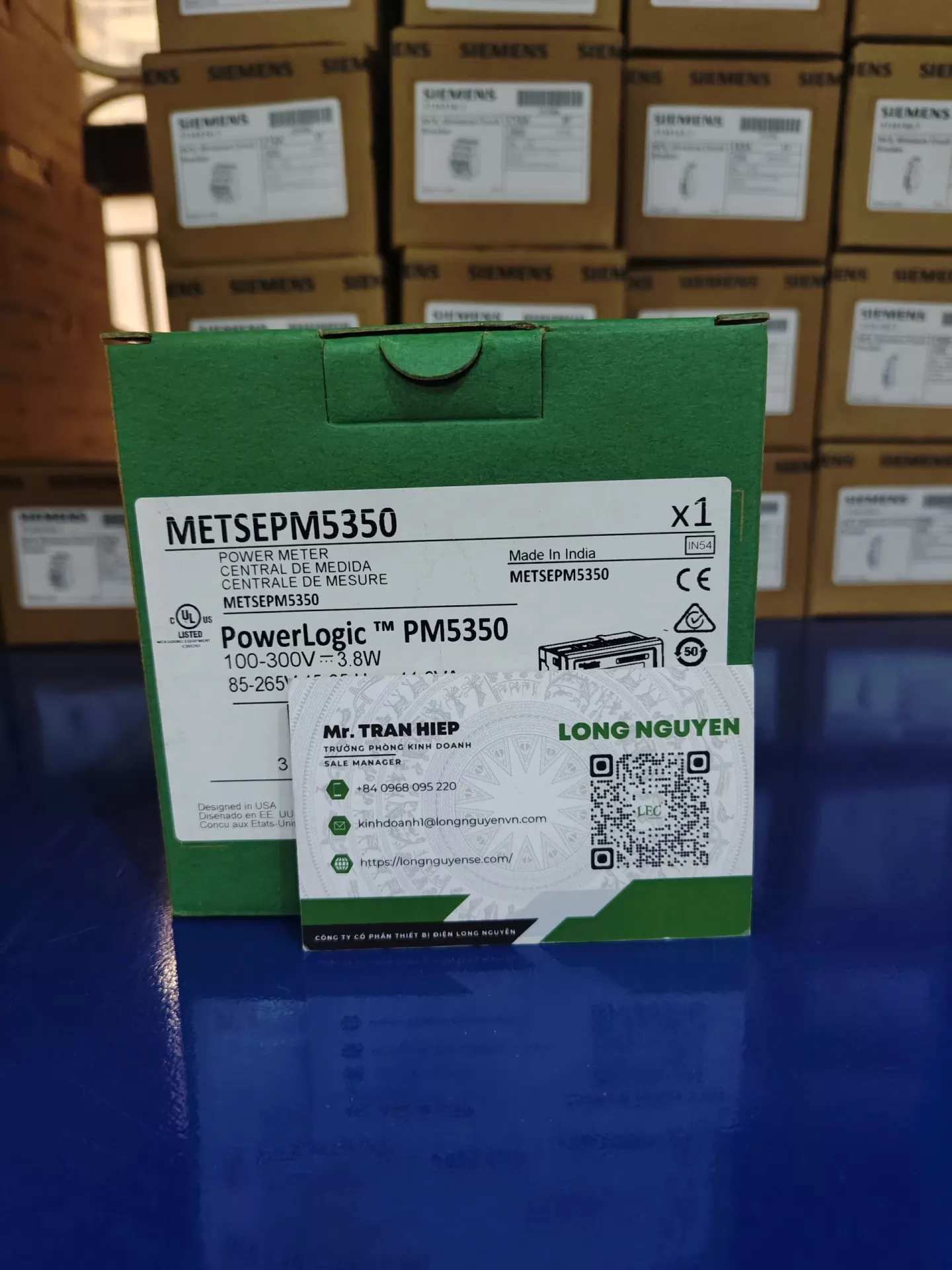

| product name | PowerLogic PM5350 |
| Device short name | PM5350 |
| Product or component type | Power meter |
| Power quality analysis | total demand distortion total harmonic distortion |
|---|---|
| Device application | Power monitoring |
| Type of measurement | Current Voltage Frequency Power factor Energy Phase angle Apparent power Active power Reactive power |
| supply voltage | 85...265 V AC 45...65 Hz 100...300 V DC |
| Network frequency | 50 Hz 60 Hz |
| [In] rated current | 5 A 1 A |
| type of network | 1P + N 3P + N 3P |
| Maximum power consumption in VA | 11.9 VA |
| Ride-through time | 100 ms 120 V AC typical 400 ms 230 V AC typical 50 ms 125 V DC typical |
| Display type | Monochrome graphic LCD |
| Display resolution | 6 lines |
| Sampling rate | 32 samples/cycle |
| Measurement current | 5…9000 mA |
| Analogue input type | Current 0.05...9 A (impedance <= 0.3 mOhm) Voltage (impedance 10 MOhm) |
| Measurement voltage | 35…480 V AC 45...65 Hz phase to phase 20…277 V AC phase to neutral |
| Frequency measurement range | 45…70 Hz |
| Number of inputs | 4 digital |
| Measurement accuracy | Current +/- 0.3 % Voltage +/- 0.3 % Frequency +/- 0.05 % Power factor +/- 0.005 Active energy +/- 0.5 % Reactive energy +/- 2 % Active power +/- 0.5 % Apparent power +/- 0.5 % Apparent energy +/- 0.5 % Reactive power +/- 2 % |
| Accuracy class | Class 0.5S active energy conforming to IEC 62053-22 Class 0.5 active energy conforming to IEC 61557-12 Class 2 reactive energy conforming to IEC 62053-23 Class 2 reactive energy conforming to IEC 61557-12 Class 0.5 power conforming to IEC 61557-12 |
| Number of outputs | 2 relay |
| Information displayed | Tariff (4) |
| Communication port protocol | JBUS Modbus RTU and ASCII at 9.6, 19.2 and 38.4 kbauds |
| Communication port support | Terminal block: RS485 |
| Data recording | Min/max of instantaneous values Alarms |
| Connections - terminals | Voltage circuit: screw terminal block4 Control circuit: screw terminal block2 Current transformer: screw terminal block6 Input/output circuit: screw terminal block6 Relay output: screw terminal block4 Ethernet network: RJ45 connector |
| Mounting mode | Flush-mounted |
| Type of installation | For indoor use in a stationary panel |
| Standards | IEC 61010-1 |
| Product certifications | CE CULus |
| Width | 96 mm |
| Depth | 44 mm |
| Height | 96 mm |
| Net weight | 0.25 kg |
