Specifications
| Range of product | EOCR |
|---|---|

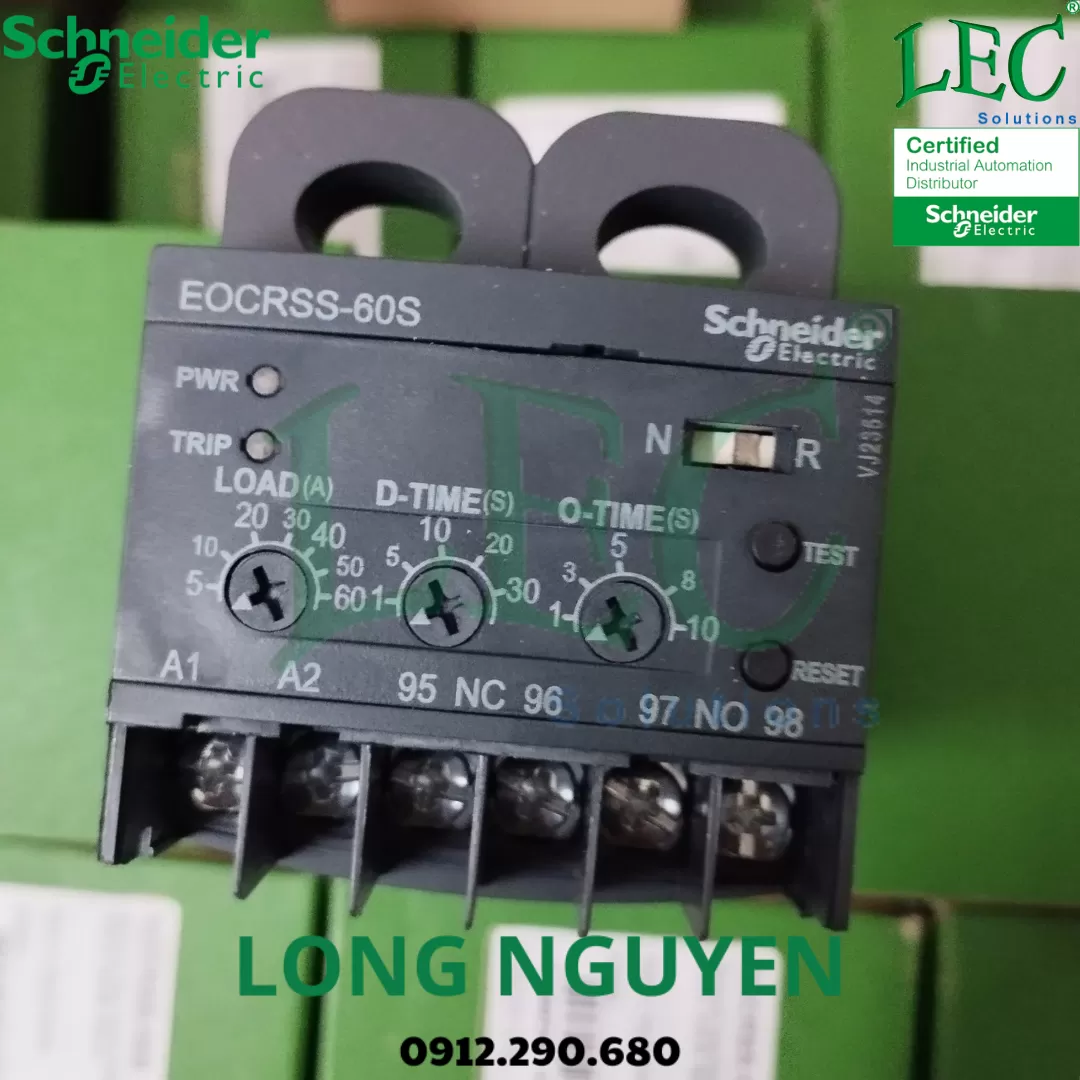

| Device short name | EOCRSS-60S |
| Product or component type | Protection relay |
| Protection type | Overload, In > OC setting Sensitivity to phase loss Sensitivity to phase reverse Locked rotor, In > 3 times OC setting Phase unbalance, 50 % |
| Product specific application | Overcurrent protection |
| Analogue output range | 4...20 mA |
| Network type | AC |
| Network frequency | 50...60 Hz |
| protection ajustment range | 5…60 A |
| Tripping threshold | 5…60 A |
| [Us] rated supply voltage | 24...220 V AC/DC |
|---|---|
| Mounting support | 35 mm DIN rail Panel |
| Contacts type and composition | 1 NO + 1 NC (OL) |
| Short-circuit and overload protection | By 4 A gG fuse |
| [Ue] rated operational voltage | 600 V AC 50...60 Hz for power circuit conforming to UL 690 V AC 50...60 Hz for power circuit conforming to CSA 690 V AC 50...60 Hz for power circuit conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-4-1 |
| Reset | Manual reset Electrical 0…1 s by interruption of power supply |
| Time delay type | O-Time: 0.3, 1...30 s, off (definite) D-Time: 1...120 s, off (definite) O-Time: 1...30 class (inverse) D-Time: 0...120 s (inverse) |
| Display type | 7 segments LED |
| power consumption per relay | 3 W |
| Connections - terminals | Control circuit: cable 2 x 1…1.5 mm²flexible with cable end - M3 Control circuit: cable 2 x 1…1.5 mm²flexible without cable end - M3 Control circuit: cable 1 x 1…2.5 mm²flexible with cable end - M3 Control circuit: cable 1 x 1…2.5 mm²flexible without cable end - M3 |
| Tightening torque | Control circuit: 0.8...1.2 N.m on cable, 4.7 mm |
| Height | 71 mm |
| Width | 70 mm |
| Depth | 68 mm |
| Net weight | 0.325 kg |
