Thông số kỹ thuật
| Range | EcoStruxure |
|---|---|
| product name | Panel Server Universal |
| Product or component type | Gateway |

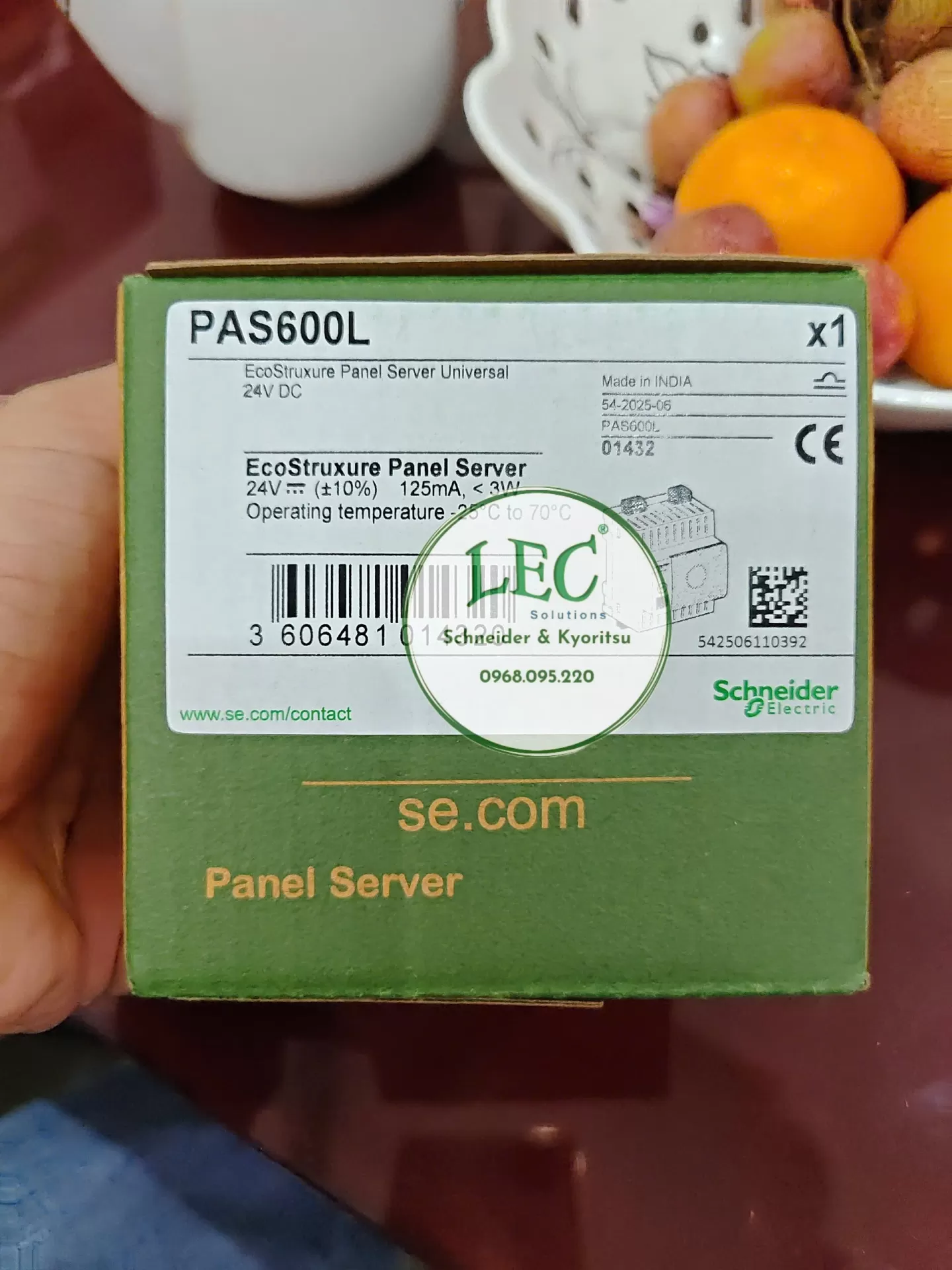

| Device short name | PAS600L |
| Device application | Gateway |
| [Us] rated supply voltage | 24 V DC |
| Communication gateway | Ethernet TCP/IP to wireless devices Ethernet/serial |
| Product compatibility | Wireless access point |
|---|---|
| Communication port protocol | Modbus TCP DHCP HTTPS NTP/SNTP IPv4 IPv6 TCP/IP |
| Communication port support | 2 RJ45: ETHERNET Screw terminal block: RS485 |
| Number of server device(s) | 32 Modbus RTU product(s) 128 Modbus TCP/IP product(s) 40 wireless (IEEE 802.15.4) product(s) - mixed 85 wireless (IEEE 802.15.4) product(s) - depending on configuration |
| Number of devices | 64 Modbus TCP/IP |
| Number of inputs | 2 digital |
| Connections - terminals | Discrete I/O: screw terminal block (top) 0.14…1.5 mm² cable(s) Power supply: screw terminal block (top) 1.5…2.5 mm² cable(s) Communication: screw terminal block (bottom) 0.14…1.5 mm² cable(s) |
| Tightening torque | Discrete I/O: 0.25 N.m Power supply: 0.6 N.m Communication: 0.25 N.m |
| Wire stripping length | Power supply: 7 mm Communication: 7 mm Discrete I/O: 7 mm |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Product certifications | CE cULus CB RCM UKCA FCC IC DNV Marine ANSI RF IACS E10 |
| Standards | IEC 61010 IEC 61010-1 IEC 61010-2-201 UL 61010 UL 61010-1 UL 61010-2-201 EN 61010-1 EN 61010-2-201 CAN/CSA C22.2 No. 61010-1-12 CAN/CSA C22.2 No. 61010-2-201 IEC 62974-1 IEC 61326-1 EN 61326-1 ETSI EN 301 489-1 ETSI EN 301 489-17 EN 301-893 EN 55032 CISPR 11 ETSI EN 300 328 IEEE 802.15.4 IEEE 802.11a/b/g/n IEEE 802.3 af/at FCC CFR 47 part 15 class A EN 62311 IEC 62311 ANSI C63.10 IEC 60945 EN 62974-1 DNVGL-GC-0339 |
| Depth | 70.2 mm |
| Height | 93 mm |
| Width | 72 mm |
| Net weight | 181 g |
| Data recording | Real time data monitoring |
| Data buffer for data publication (cloud, SFTP, HTTPS) depending on network | 1 month(s) |
| Function available | Embedded web page for configuration and upgrade Diagnosis capabilities Diagnostic report Diagnostics on communication Energy management With integrated web server Firmware update Backup/restore configuration Configurable event |
| Product specific application | Wireless Schneider Electric devices ecosystem |
| Topology | Separated Ethernet network Switched Ethernet network |
| Web services | HTTPS server SFTP publication (CSV / JSON) HTTPS publication (CSV / JSON) |
| Communication service | Device Profile for Web Services (DPWS) Modbus TCP client Modbus TCP server SNTP client DHCP client RSTP |
| Commissioning interface | EcoStruxure Power Commission desktop EcoStruxure Power Commission Mobile (through Wi-Fi Access point) EcoStruxure Power Commission web (for third party device integration) Web page |
| Realtime clock | With RTC-battery set With user calibration |
| Time synchronisation protocol | NTP SNTP |
| Range compatibility | EcoStruxure Facility Expert EcoStruxure Building Operation EcoStruxure Power Operation EcoStruxure Power Monitoring Expert EcoStruxure Asset Advisor EcoStruxure Energy Hub EcoStruxure Resource Advisor Third party SCADA |
| Communication interface | Modbus and wireless (IEEE802.15.4) product |
