Specification
| Product range | TeSys Deca |
|---|---|
| Product range | TeSys Deca |
| Product Type | Contactor |

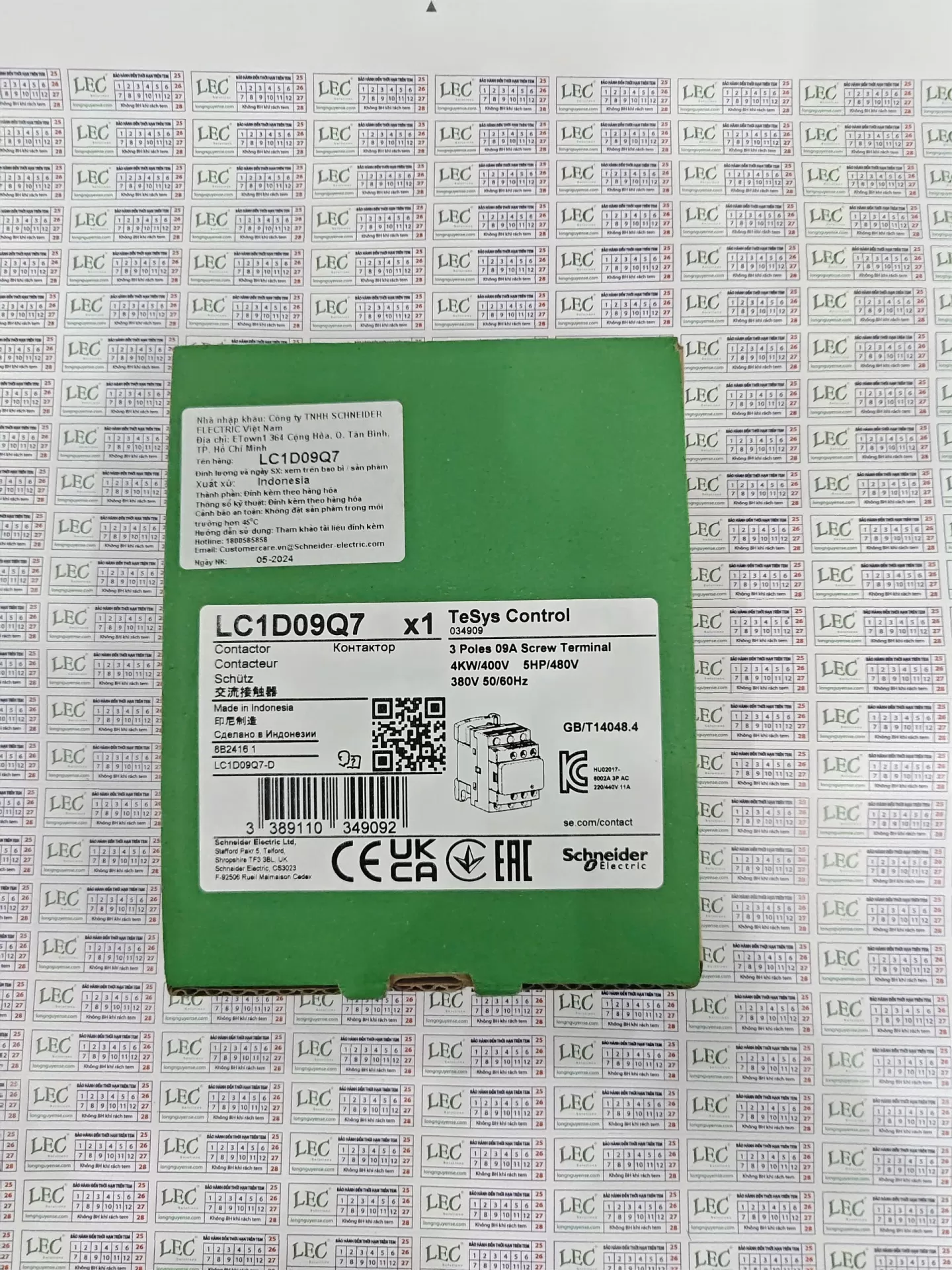

| Product Short Name | LC1D09Q7C |
| Contactor application areas | Applicable to AC loads with power factor greater than or equal to 0.95 Applicable to non-inductive or slightly inductive loads, resistance furnaces |
| Use Category | AC-4 AC-1 AC-3 AC-3e |
| Number of poles | 3P |
| Rated operating voltage [Ue] | Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 225 V DC |
| Rated operating current [Ie] | 25 A (when operating temperature <= 60 °C) when operating voltage <=<= 440 V AC AC-1 for power circuit 9 A (when operating temperature <= 60 °C) when operating voltage <=<= 440 V AC AC-3 for power circuit 9 A (when operating temperature <= 60 °C) when operating voltage <=<= 440 V AC AC-3e for power circuit |
| Control circuit voltage [Uc] | 380V AC 50/60 Hz |
| Motor power (kW) | 5.5 kW When operating voltage <=500 V AC 50/60 Hz (AC-3) 2.2 kW When operating voltage <=220/240 V AC 50/60 Hz (AC-3) 4 kW When operating voltage <=380/400 V AC 50/60 Hz (AC-3) 4 kW When operating voltage <=415/440 V AC 50/60 Hz (AC-3) 5.5 kW When operating voltage <=660/690 V AC 50/60 Hz (AC-3) 2.2 kW When operating voltage <=400 V AC 50/60 Hz (AC-4) 5.5 kW When operating voltage <=500 V AC 50/60 Hz (AC-3e) 2.2 kW When operating voltage <=220/240 V AC 50/60 Hz (AC-3e) 4 kW When operating voltage <=380/400 V AC 50/60 Hz (AC-3e) 4 kW When operating voltage <=415/440 V AC 50/60 Hz (AC-3e) 5.5 kW When operating voltage <=660/690 V AC 50/60 Hz (AC-3e) |
|---|---|
| model | LC1D |
| Loop contact type | 3 NO |
| Protective cover | bring |
| Conventional thermal current [Ith] | 25 A (when operating temperature <= 60 °C) for power circuit 10 A (when operating temperature <= 60 °C) for signal circuit |
| Rated short-time withstand current [Icw] | 105 A When the operating temperature is <=40 °C, it can last for 10 s for the power circuit 210 A When the operating temperature is <=40 °C, it can last for 1 s for the power circuit 30 A When the operating temperature is <=40 °C, it can last for 10 minutes for the power circuit 61 A When the operating temperature is <=40 °C, it can last for 1 minute for the power circuit 100 A When the operating temperature is <=40 °C, it can last for 1 s for the signal circuit 120 A When the operating temperature is <=40 °C, it can last for 500 ms for the signal circuit 140 A When the operating temperature is <=40 °C, it can last for 100 ms for the signal circuit |
| Fuses used with relays | 10 A gG, for signal circuits in accordance with IEC 60947-5-1 25 A gG when operating voltage <=<= 690 V coordination type 1, for power circuits 20 A gG when operating voltage <=<= 690 V coordination type 2, for power circuits |
| Average impedance | 2.5 mΩ - Ith 25 A 50 Hz for power supply circuit |
| Rated insulation voltage [Ui] | Power circuit: 690 V in accordance with IEC 60947-4-1 Signal circuit: 690 V in accordance with IEC 60947-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| Rated impulse withstand voltage [Uimp] | 6 kV compliant with IEC 60947 |
| Safety and reliability level | B10d = 1369863 times nominal load contactor in accordance with EN/ISO 13849-1 B10d = 20000000 times mechanical load contactor in accordance with EN/ISO 13849-1 |
| Mechanical life | 15 Mcycles |
| Electrical life | 0.6 Mcycles 25 A at AC-1 Ue <= 440 V 2 Mcycles 9 A at AC-3 Ue <= 440 V 2 Mcycles 6.6 A at AC-3 Ue 660/690 V 2 Mcycles 9 A at AC-3e Ue <= 440 V 2 Mcycles 6.6 A at AC-3e Ue 660/690 V |
| Control loop characteristics | AC at 50/60 Hz |
| Surge Suppression Module | No built-in surge suppression module |
| Control voltage limit | 0.3...0.6 Uc (-40…60 °C): coil release 50/60 Hz 0.8...1.1 Uc (-40…60 °C): coil pick-up 50 Hz 0.85...1.1 Uc (-40…60 °C): coil pick-up 60 Hz |
| (~50Hz starting) Power consumption (VA) | 70 VA 60 Hz cos phi 0.75 (at 20 °C) 70 VA 50 Hz cos phi 0.75 (at 20 °C) |
| (~50Hz holding) Power consumption (VA) | 6 VA 60 Hz cos phi 0.3 (at 20 °C) 7 VA 50 Hz cos phi 0.3 (at 20 °C) |
| Heat dissipation | 1.5…2.5 W at 50/60 Hz |
| Action time | 12...22 ms closing 4...19 ms opening |
| Maximum operating frequency | 3600 times/hour at 60 °C |
| Wiring Capacity | Power circuit: screw terminals1 1…4 mm² Lug Ø: 8 mm Cable type: Flexible cable without terminal Power circuit: screw terminals2 1…4 mm² Lug Ø: 8 mm Cable type: Flexible cable without terminal Power circuit: screw terminals1 1…4 mm² Lug Ø: 8 mm Cable type: Flexible cable with terminal Power circuit: screw terminals2 1…2.5 mm² Lug Ø: 8 mm Cable type: Flexible cable with terminal Power circuit: screw terminals1 1…4 mm² Lug Ø: 8 mm Cable type: Solid cable without terminal Power circuit: screw terminals2 1…4 mm² Lug Ø: 8 mm Cable type: Solid cable without terminal Control circuit: screw terminals1 1…4 mm² Cable type: Flexible cable without terminal Control circuit: screw terminals2 1…4 mm² cable type: flexible cable without terminal Control circuit: screw terminals 1 1…4 mm² cable type: flexible cable with terminal Control circuit: screw terminals 2 1…2.5 mm² cable type: flexible cable with terminal Control circuit: screw terminals 1 1…4 mm² cable type: solid cable without terminal Control circuit: screw terminals 2 1…4 mm² cable type: solid cable without terminal Power circuit: screw terminals |
| Tightening torque | Power circuit: 1.7 Nm by screwing with screwdriver Ø 6 flat headPower circuit: 1.7 Nm by screwing with screwdriver No 2 Phillips screwControl circuit: 1.7 Nm by screwing with screwdriver Ø 6 flat headControl circuit: 1.7 Nm by screwing with screwdriver No 2 Phillips screwPower circuit: 1.7 Nm by cable connector with screwdriver Ø 6 flat head screw: M3.5Power circuit: 1.7 Nm by cable connector with screwdriver No 2 Phillips screw: M3.5Control circuit: 1.7 Nm by screwing with screwdriver pozidriv No 2Power circuit: 1.7 Nm by screwing with screwdriver pozidriv No 2 |
| Auxiliary contact type | Type Mechanical connection 1 NO + 1 NC Conforming to IEC 60947-5-1 Type Mirror image of main contact state 1 NC Conforming to IEC 60947-4-1 |
| Auxiliary contacts available on each contactor | 1 NO + 1 NC |
| Signal loop frequency | 25...400 Hz |
| Minimum switching current [Imin] | 5 mA for signal loop |
| Minimum switching voltage | 17 V for signal loop |
| Insulation resistance | > 10 MΩ for signal loop |
| No overlap time | 1.5 ms between NC and NO contacts when de-energized 1.5 ms between NC and NO contacts when energized |
| Installation | Rail mounting Base plate mounting |
| Comply with standards | IEC 60947-1 IEC 60947-4-1 GB/T 14048.4 |
|---|---|
| Product Certification | CE UKCA CCC |
| IP protection rating | IP2X front panel main circuit applicable to IEC 60529 IP2X front panel coil circuit applicable to IEC 60529 |
| Protective measures | TH compliant with IEC 60068-2-30 |
| Ambient air temperature | -40…60 °C operation 60…70 °C with derating -60…80 °C storage |
| Operating altitude | 3000 m without derating |
| Fire resistance and abnormal high temperature resistance | 850 °C in accordance with IEC 60695-2-11 |
| Shock and vibration resistance | Vibration resistance with contacts open (2 gn (5...300 Hz)) conforming to IEC 60068-2-6 Vibration resistance with contacts closed (4 gn (5...300 Hz)) conforming to IEC 60068-2-6 Shock resistance 11 ms with contacts open (10 gn) conforming to IEC 60068-2-27 Shock resistance 11 ms with contacts closed (15 gn) conforming to IEC 60068-2-27 |
| high | 77 mm |
| width | 45 mm |
| depth | 86 mm |
| net weight | 0.32 kg |
